Thermal Management System

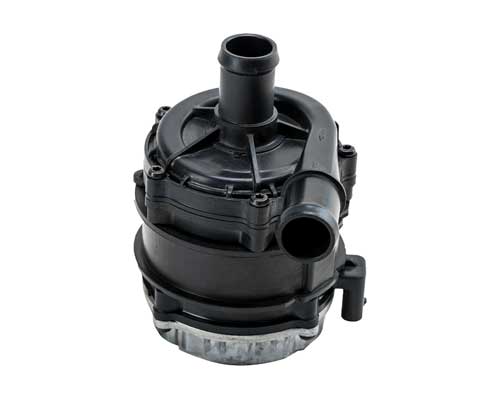

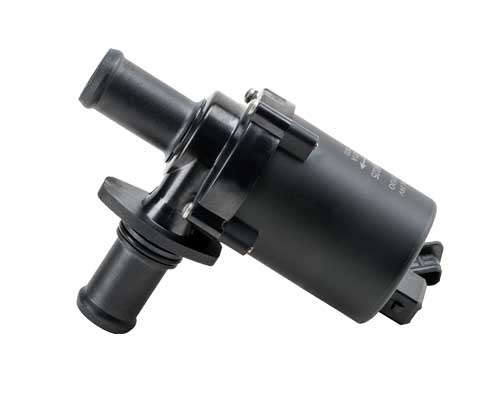

Electric Water Pump - Low Power Class

When it comes to building e-Water Pumps, PV Clean Mobility Technologies applies its extensive experience and technical leadership to deliver the highest level of performance and efficiency. Built using advanced technology Brushless DC (BLDC) electric motor and the canned motor concept, our e-water pump reduces energy consumption and features the highest efficiency in class. Each of the e-Water Pumps designed and developed by us is tested and validated in-house for the highest effectiveness, efficiency, durability, and safety.

Applications:

Passenger Car
2-Wheeler
Commercial Vehicle
Off-highway
3 wheeler
Diesel
Hybrid Vehicle
Electric Car

Advantages:

  • Modular design - canned motor concept
  • Highly efficient BLDC motor
  • Low current consumption
  • Modular & robust light weight design
  • Dry run and motor blocking protection design
  • Reverse polarity protection
  • Cost effective solution

Tech specifications:

  • Multiple Power Options from 15W – 70W Electric Power rpm Control
  • 12V DC Nominal Voltage
  • Operation Voltage Range- 9V to 16V
  • Current Consumption – 1.2A to 7A depending on model
  • Scalable Volume Flow
  • Scalable Differential Pressure
  • Coolant temp. - -40°C to 125°C
  • Communication – PWM/CAN/LIN
  • EMC Compatible – CISPR25 & ECER10
  • Waterproof IP6K9
  • Smart System Diagnostics
  • Short Circuit and OverVoltage protected
  • Burst pressure proof design
